Custom App with Publishing to Alexa Contact Finder

Objective:

This document will demonstrate how to use the Custom App feature of the VoiceWorx platform.

Introduction to API:

The VoiceWorx platform can integrate with external platform via web API’s and to demonstrate this capability, we have created a demo API endpoint (https://demo.voiceworx.ai/api/Contacts) in our demo web app “demo.voiceworx.ai”. We created multiple API endpoints for Contacts module and will be using the endpoint that searches an underlying Contacts database and returns the contact number of a specific person.
The demo web app that we created has the ability to perform CRUD operations against the underlying Contacts database that is triggered by calls to the exposed contact API’s in demo.voiceworx.ai
Web App URL : http://demo.voiceworx.ai
Here is a sample contact in the database.

Goal:

Our goal is to demonstrate the capability of the VoiceWorx platform to integrate with external platforms and perform CRUD operations against them via web API calls. We will create an Alexa Skill called “Contact Finder”. This Alexa app will look up and return a person’s number that is stored in the contacts database and is accessible via the contacts API endpoints in demo.voiceworx.ai. Note: the example uses Basic Authentication so username/passwords to the external resource is required.

Steps:

The following shows the general steps/activities that will be carried out in setting up this integration. Note: It is advisable to use same email for signup across the 3 channels below. Step 1 -3 below are compulsory.
  1. 4.
    Ensure you Login With Amazon (LWA) https://developer.amazon.com/alexa/console/ask account is setup by your admin. If you are the account admin, you can follow this instruction to set it up.
  2. 5.
    Set up connection to the external web API
  3. 6.
    Create a custom skill in Voiceworx.
  4. 7.
    Publish the skill
  5. 8.
    Test the Alexa skill.

Set up connection to the external web API

  1. 1.
    Login to the VoiceWorx platform, use left navigation menu and click “Integration” then select “Connect System”. In the resulting page, click “Connect External Systems”.
  1. 1.
    In “Connect External System” select or do the following:
Select Integration Category: Custom
Select System Type: Rest API Service
Click: Connect System.
Graphical user interface, text, application Description automatically generated
  1. 1.
    Once in “Rest API Service Setup” select or enter the following:
System Instance Name: ContactFinder
Authorization Type: Basic Auth
Add Web API URL: https://demo.voiceworx.ai
Under Basic Auth Settings
Enter Username and Password
Click: Validate System to ensure you have access to the web API endpoint.
Click on Validate System and Click on Save after the connection is validated.

Create Custom App in Voiceworx.ai

  1. 1.
    To create a custom app, use left navigation menu and click “Custom Apps” then select “Manage Apps”. Then click “New Custom App”.
  1. 1.
    Now add Custom Skill by doing the following:
Name: Contact Finder
Custom Skill Type: Search
Category: None
Click: Save
  1. 1.
    In the top menu tabs, select “Data Sources” then “Create New Data Source”. Select or enter the following:
Name: ContactFinderDS
Integration Configuration: Rest API Service: ContactFinder (integration configured in Step 2)
Manage Connections to create the external platform WebAPI integration
Click: Save
  1. 1.
    In the top menu tabs, select “Methods” then select “Create New Methods”.
Provide following details in the resulting Create Method box and click on Save.
    • Name: GetPhoneNumberByName
    • Request Type: GET
    • Query Path: ?name={{Person}}
    • Result Type: Record
    • Method Path: /api/contacts
    • Empty Result Template: Sorry the searched contact could not be found. How else can I help you?
    • Result Template: {{Person}} contact number is {{Phone}}. How else can I help you?
    • Click: Save
  1. 1.
    Let’s test if the method is extracting the contact information correctly. Click on Test button.
Fill the following parameter and click on Method Test, then on Result section, click on Result tab.
Person : Martin
  1. 1.
    In the top menu tabs, select “Intents” and “Create New Intent”.
Then select or enter the following:
Name: PhoneByName
Intent Type: Search
Intent Action: Execute Method
DataSource: ContactFinderDS
DataSource Method: GetPhoneNumberByName
Click: Save
  1. 1.

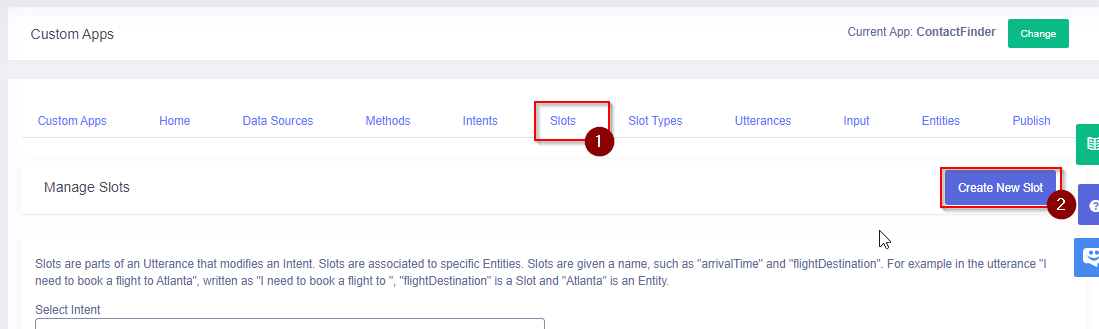

    In the top menu tabs, select “Slots” and select “Create New Slot”.
Note the Reprompt message is what Alexa will ask if it can’t fill/resolve the person slot. Then select or enter the following:
Name: Person
Slot Order: Blank
Reprompt Message: person name?
Type: Text
Custom App: ContactFinder
Intent: PhoneByName
Click: Save
  1. 1.
    In the top menu tabs, select “Utterance” and select “Create New Utterance”. Utterance are words spoken to launch specific intents.
Now input or select the following:
Value: get phone number for {Person}
Custom Skill: ContactFinder
Intent: PhoneByName
Click: Save
Important: To insert slot in an utterance, type ‘{‘and a drop-down of available slots will appear.
You can add as many utterances as you would like.
  1. 1.
    In the top menu tabs, select “Input” and select “Create New Input”. Then input or select the following:
Name: Person
Custom Skill: ContactFinder
Custom Intent: PhoneByName
Data Source: ContactFinderDS
Data Source Method: GetPhoneNumberByName
You will be able to view the created input as below:

Publish to Alexa

  1. 1.
    To publish to Alexa, select “Publish” in the top menu tabs then click “Add App Publishing”. Then input or select the following:
Fill the following details to create publish.
External Skill Name: ContactFinder. (This will be the name of the skill in Alexa. Therefore, make it unique and different from the names of your other skills in Alexa.)
Skill Type: Select Search
Channel: Select Alexa
Uncheck the following: Require account linking, Auto Publish
Skill Invocation Name: ContactFinder. (This will be what users say to launch your skill in Alexa. It must be in lower case alphabets cannot contain START, BEGIN, STOP, EXIT, LAUNCH and cannot contain number or special characters.)
Optional: Replace all placeholder values in all “Message”. Uncheck all the settings shown in the second image below.
Click: Save.
  1. 1.
    Set the needed Alexa permissions/features for your app in VoiceWorx by checking/unchecking the setting checkboxes in the publishing page as shown below.
Click: Save.
  1. 1.
    In the top menu tabs select “Publish” then click “Publish to Alexa”.
  1. 1.
    Once in Publish Skill to Amazon Alexa select and do the following:
Selected Skill: Contact Finder
Select Amazon Account: LWA Config
Select the LWA account setup by your admin or the one you set up in step 4 above.
Click: Publish To Alexa
  1. 1.
    On the resulting screen, ensure that a success message shows for the publishing steps before clicking the “Go To Alexa Skill”. If success message not shown, click “Go To Skill Publishing” to fix any issue shown in publishing result.
Graphical user interface, text, application Description automatically generated
  1. 1.
    On the Alexa skill page, ensure “Full Build Successful” message is shown in bottom right corner before starting to test skill.
Graphical user interface, text, website Description automatically generated
  1. 1.
    Go to “test” tab in the top menu, then below “test” tab change the skill test status from “Off” to “Development”.
  1. 1.
    Invoke skill by typing the invocation name (Contact Finder) inserted in the publishing step in Voiceworx. If the invocation is successful, your configured welcome message will be displayed in the developer console.
A screenshot of a computer screen Description automatically generated
Congratulations! You have successfully completed building a
Custom Skill and publishing to Alexa.
Note: Keywords ‘App’ and ‘Skill’ are used interchangeably.
